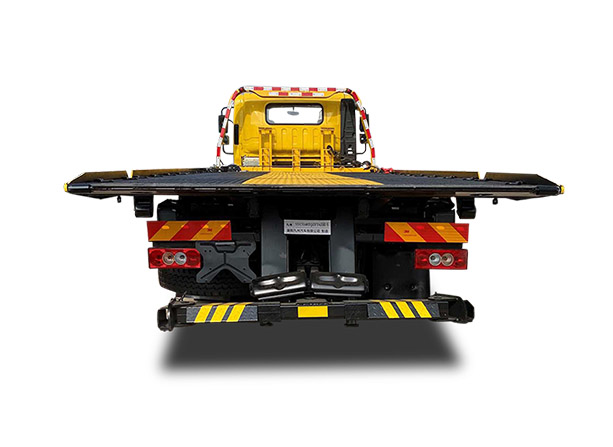

Flatbed mechanism is professional and modular; all assemblies are precisely manufactured and interchangeable. The surface has anti-slip treatment, and the new stamping plate combined with anti-slip nail structure makes the surface smoother.

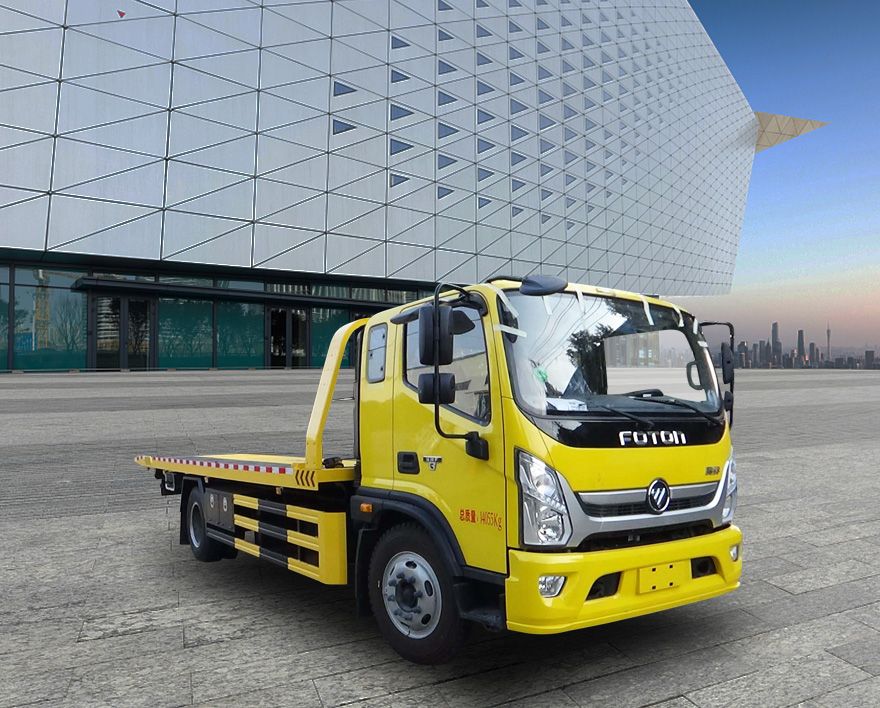

All tow truck welding uses CO2 shielded welding and TIG welding; weld length exceeds 300mm, with automatic seam welding, making the weld surface smooth and beautiful.
The chassis is sturdy and quality guaranteed.
Powerful, using internationally quality diesel engine.
| Total Models | 2 |
| Overall Dimensions: | 8980×2550×2520 mm |
| Gross Weight: | 14055 kg |
| Curb Weight: | 7500 kg |
| Front Row Passengers: | 3 persons |
| ABS System: | Yes |
| Approach/Departure Angle: | 18/9 ° |
| Front/Rear Overhang: | 1225/3055, 1270/3010 mm |
| Axle Load: | 4860/9195 kg |
| Wheelbase: | 4200, 4500, 4700, 4800, 3800 mm |
| Number of Axles: | 2 |
| Maximum Speed: | 110, 90 km/h |
| Number of Leaf Springs: | 3/4+3, 8/10+8, 3/10+8, 6+1/9+7, 3/8+6, 9/4+3, 9/8+6, 10/10+8 |
| Number of Tires: | 6 |
| Tire Specifications: | 8.25R20 16PR, 9.00R20 16PR, 255/70R22.5 16PR, 10R22.5 16PR |
| Front Track: | 1830, 1705, 1955, 1865 mm |
| Rear Track: | 1800, 1680, 1840 mm |
| Steering Type: | Steering Wheel |
| VIN (Vehicle Identification Number): | LVBV5PBB××××××××× |
| Chassis Model: | BJ1148VKPEG-AD1 |
